​​Cisco Catalyst IE9300 Rugged Series switches​

​​Cisco Catalyst IE9300 Rugged Series switches​

​​Build high-performing networks with versatile switches​

Create smarter, safer, and faster industrial networks with powerful switches designed for high scalability, robust security, performance assurance, and a wide variety of use cases.

​​Request demo​ ​View data sheet
Overview Resources

Unlock the potential of your industrial network

01:29

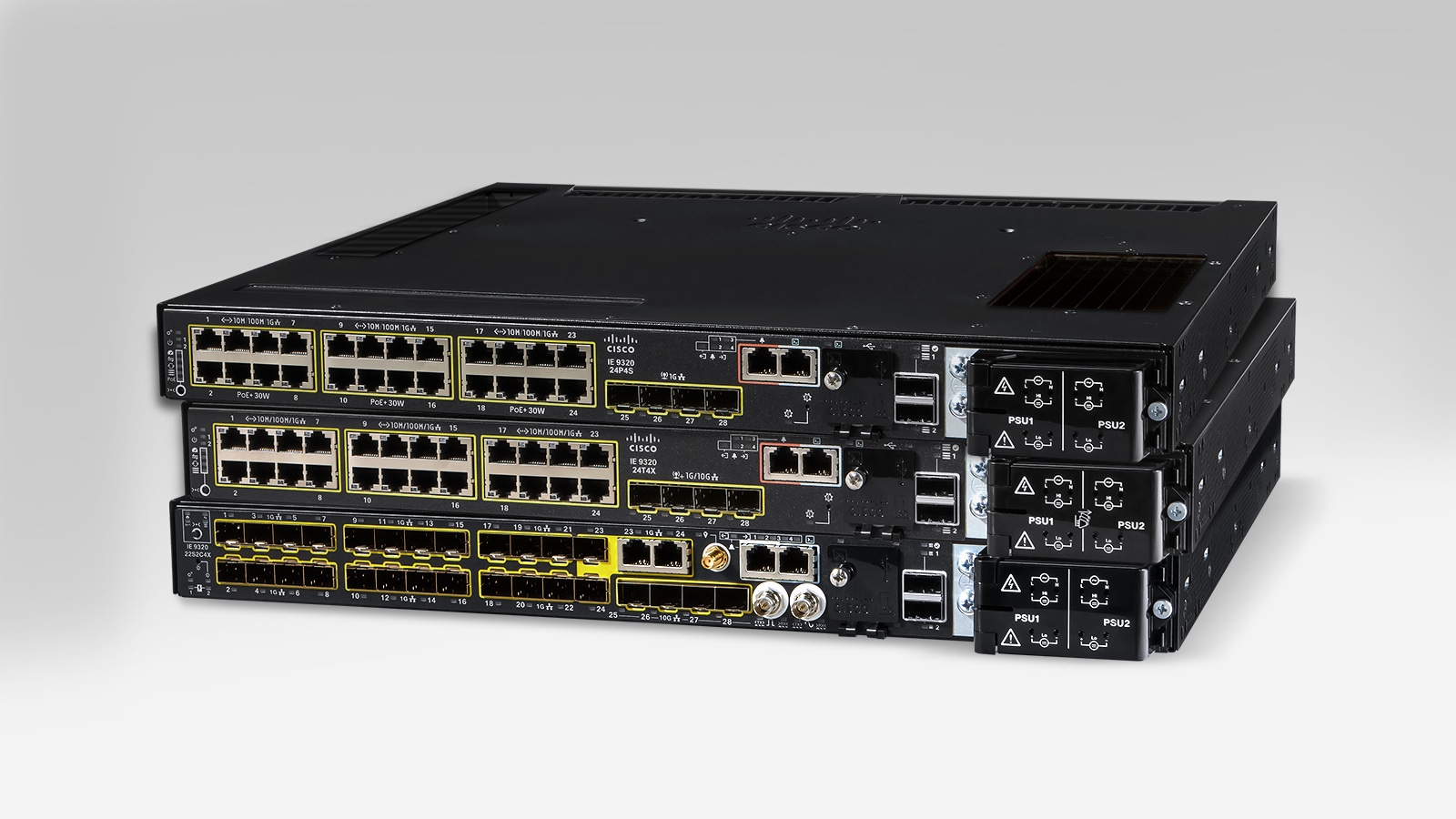

Catalyst IE9300 overview video

An introduction to the Catalyst IE9300 Rugged Series

Get more power for your devices and more bandwidth for your applications. Enforce advanced security policies. Gain device-to-cloud visibility to detect issues faster and optimize network performance.

One switch family. Unlimited possibilities.

Along production lines. Inside electric substations. At the airport or in roadway intersections. Catalyst IE9300 Rugged Series switches power a broad range of industry needs, thanks to their all-fiber, all-copper, and mixed-port configurations​.

​Manage and secure operations with tools you trust​

Shorten deployment times and improve operational efficiency at scale using Cisco Catalyst Center. Monitor network performance with a Cisco ThousandEyes agent. Gain visibility into connected assets and your security posture with Cisco Cyber Vision.

Aggregate and distribute traffic

Connect multiple access switches or fiber rings to the core switching infrastructure with the high-bandwidth, 10-gigabit uplink ports.

​​Get more power and bandwidth for your devices​

Connect power-hungry and bandwidth-thirsty devices, like high-resolution cameras and wireless access points, with multigigabit ports and high-wattage Power over Ethernet (PoE).

Catalyst IE9300 Rugged Series models

IE-9320-16P8U4X​​ model

IE-9320-16P8U4X

For deployments that need to connect high-power, high-bandwidth devices and for traffic aggregation​

  • 24 copper ports, including 16 GE ports with PoE+ and 8 2.5-GE ports with 4PPoE (up to 90W per port)
  • 4 10-GE SFP+ ports
  • ​​720W of total PoE power budget
  • ​​High switching bandwidth with backplane stacking
  • ​​Advanced industrial security and resiliency protocols
IE-9320-24P4X​​ model

IE-9320-24P4X

​​For deployments that require high-density PoE, easy scalability, and traffic aggregation

  • ​​​24 GE copper ports with PoE+
  • 4 10-GE SFP+ ports
  • ​​720W of total PoE power budget
  • ​​High switching bandwidth with backplane stacking​
  • ​​Advanced industrial security and resiliency protocols​
IE-9320-24P4S​​ model

IE-9320-24P4S

​​For deployments that need high-density copper ports​ with PoE

  • ​​​24 GE copper ports with PoE+
  • 4 GE SFP ports
  • ​​385W total PoE budget
  • ​​High switching bandwidth with backplane stacking
  • ​​Advanced industrial security and resiliency protocols
IE-9310-16P8S4X model

IE-9310-16P8S4X (new)

For deployments that need the flexibility of fiber and copper ports with PoE in a single switch

  • 16 GE copper ports with PoE+
  • 8 GE SFP, and 4 10-GE SFP+ ports
  • 480W of total PoE power budget
  • Advanced industrial security and lossless resiliency protocols

IE-9320-24T4X​​ model

IE-9320-24T4X

For deployments that need high-density copper ports, easy scalability, and traffic aggregation

  • ​​24 GE copper and 4 10-GE SFP+ ports​
  • ​​High switching bandwidth with backplane stacking​
  • ​​Advanced industrial security and resiliency protocols​

IE-9320-22S2C4X model

IE-9320-22S2C4X

For deployments that need fiber access or aggregation, simple scalability, precision timing input, and conformal coating

  • ​​​​22 GE SFP, 4 10-GE SFP+, and 2 GE dual-media ports
  • ​​High switching capacity with backplane stacking
  • Precision timing input​ with GNSS and IRIG-B receivers
  • ​​Conformal coating for added environmental protection
  • ​​Advanced industrial security and lossless resiliency protocols​
IE-9320-26S2C​​ model

IE-9320-26S2C

For deployments that need high-density fiber access ports and easy scalability

  • ​​​​26 GE fiber and 2 GE dual-media ports
  • ​​High switching capacity with backplane stacking​
  • ​​Advanced industrial security and lossless resiliency protocols
IE-9310-26S2C​ model

IE-9310-26S2C

​​For deployments that need high-density fiber access ports

  • ​​26 GE fiber and 2 GE dual-media ports
  • ​​Advanced industrial security and resiliency protocols​

IE-9310-16P8S4X model

IE-9310-16P8S4X (new)

For deployments that need the flexibility of fiber and copper ports with PoE in a single switch

  • 16 GE copper ports with PoE+
  • 8 GE SFP and 4 10-GE SFP+ ports
  • 480W of total PoE power budget
  • Advanced industrial security and lossless resiliency protocols

​​Powered by Cisco Catalyst software​

​Get your industrial network working smarter and faster. Cisco Catalyst software subscriptions make it easy.​

​​Explore subscriptions
​​Find your switch​ ​​View data sheet​
08:45
Catalyst IE9300 Rugged Series demo video​

​​See how they could work for you​

Get a closer look at the switches that drive some of the toughest industrial networks in the world.

​​More ways to boost your network​

Protect operations against cyberthreats

Deploy OT security at scale with visibility, enforcement, and zero-trust remote access embedded into your network equipment.

Read white paper

Simplify and scale IT for industrial networks

Take advantage of the cloud to deliver advanced OT services to your industrial network.

​​Read blog ​

​​View Cisco Validated Design guides​

​​Reduce risk with detailed guidance on designing and setting up your industrial network.​

​​See design guides ​

Discover more resources

​​Learn more with blogs, videos, and product guides.​

​​See all resources

Get the most out of your Enterprise Agreement

Get all the Cisco Industrial IoT software licenses you need with one simple, cross-portfolio agreement.

Get details

Get expert guidance

Have your questions answered in a custom demo with our industrial IoT networking experts. They'll work with you to put together the right solution for you and your organization.
