The Cisco Campus Gateway is the intelligent, easy-to-deploy wireless cloud solution for large campus scale, seamless roaming, and flexible functionality for the modern enterprise.
Overview
Platform highlights
Cisco Campus Gateway is a cloud native wireless solution, built for large campus wireless networks that require seamless roaming at scale. For organizations that need the agility and flexibility of cloud management for their wireless networks, this solution is easy to deploy and gives you enterprise-class functionality from the start.
Key features and benefits
Deliver agility and flexibility with a cloud-managed architecture without sacrificing functionality. Monitor and manage your wireless network from anywhere.
Campus Gateway supports your network growth with the ability to scale to 5,000 access points and 50,000 clients and 100Gbps throughput.
Easy-to-deploy solution built on a Cisco unified hardware platform means less disruption to your infrastructure design for a smooth transition to cloud-managed wireless.
Adaptive Policy with Security Group Tags simplifies network segmentation and boosts security without sacrificing agility or flexibility.
Simple and rapid onboarding with the cloud dashboard allows you to set up Day 0.
For more details about Cisco Wireless Campus Gateway feature support, see Cisco's Feature Matrix.
How it works
Campus Gateway is a cloud-native product, built to centralize wireless LAN architecture, offering large campuses choice in their architecture strategy.
Keep your users and clients connected with seamless scale across large campus wireless networks
For the uptime and peace of mind you need, Campus Gateway supports Active-Active clustering
Get the full flexibility and benefit of cloud with supported cloud managed Wi-Fi 6, Wi-Fi 6E and Wi-Fi 7 access points.
Cisco Campus Gateway is a cloud native wireless solution, built for large campus wireless networks that require seamless roaming at scale. For organizations that need the agility and flexibility of cloud management for their wireless networks, this solution is easy to deploy and gives you enterprise-class functionality from the start.
Upgrade your wireless network with Advanced features.
Campus Gateway unlocks cloud management and scale for the enterprise network. Take your network to the next level with AI-enabled features and functionality, now available with Cisco wireless cloud Advanced licenses.
Learn more about advancing your wireless today.
Models and specifications

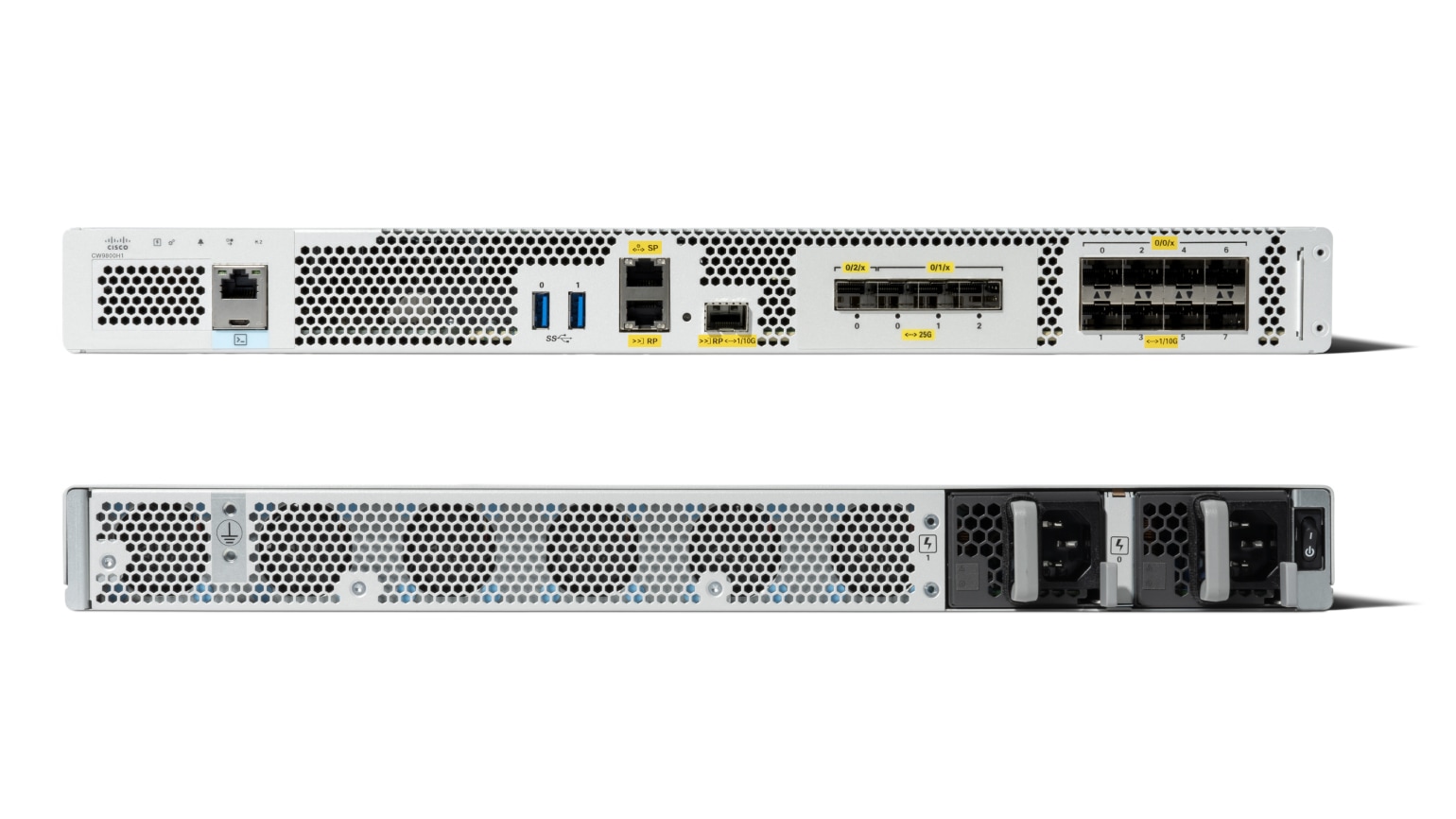

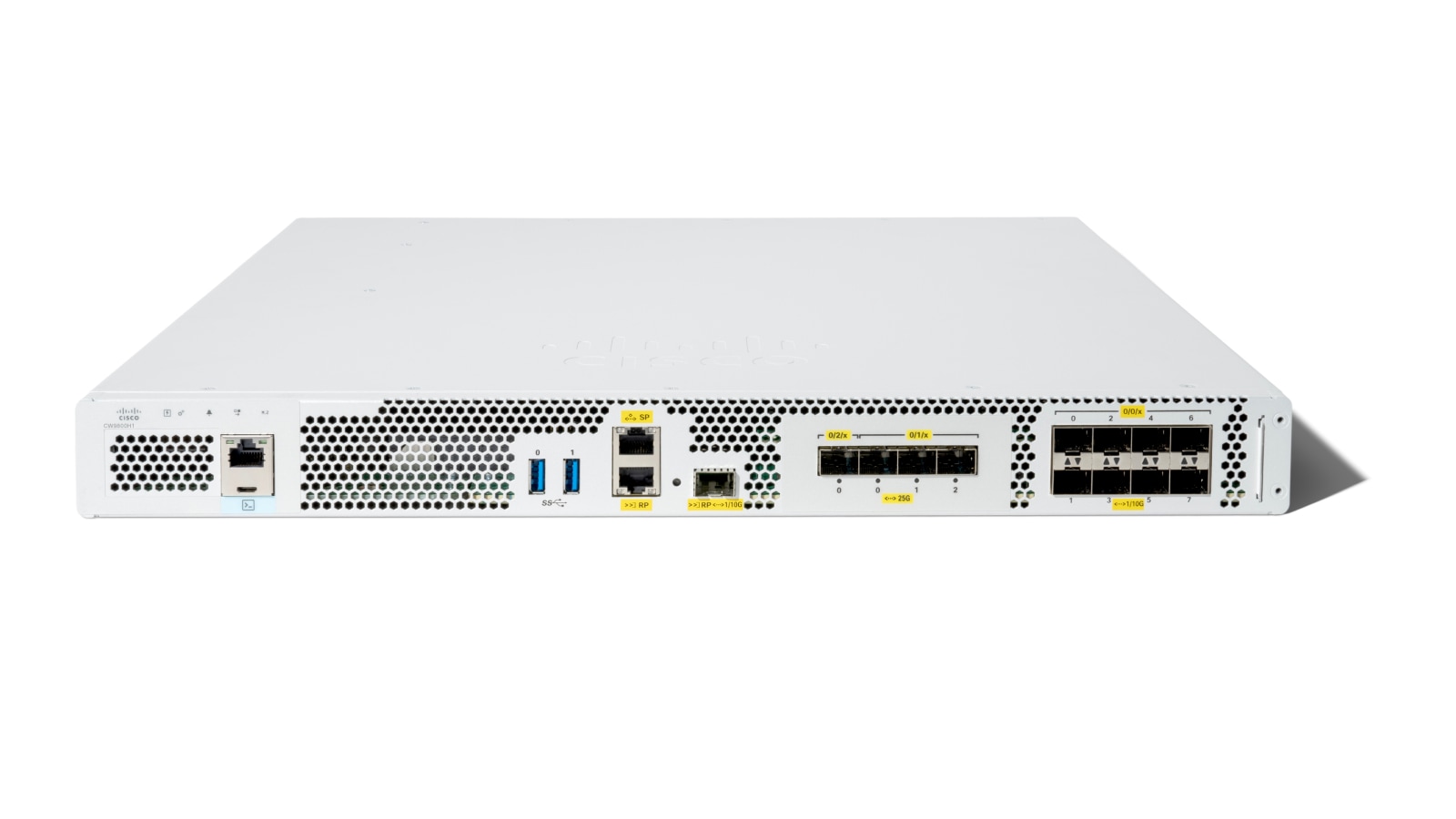

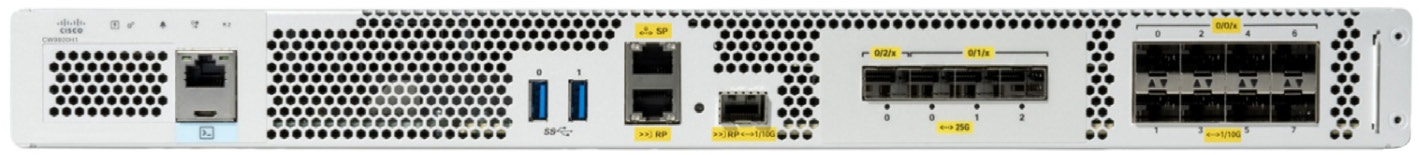

Campus Gateway is a 1RU device that is built on the same hardware platform as Cisco CW9800 wireless controllers, the products typically used for on-premises management. Although Campus Gateway shares its hardware platform, it is a cloud-native product.

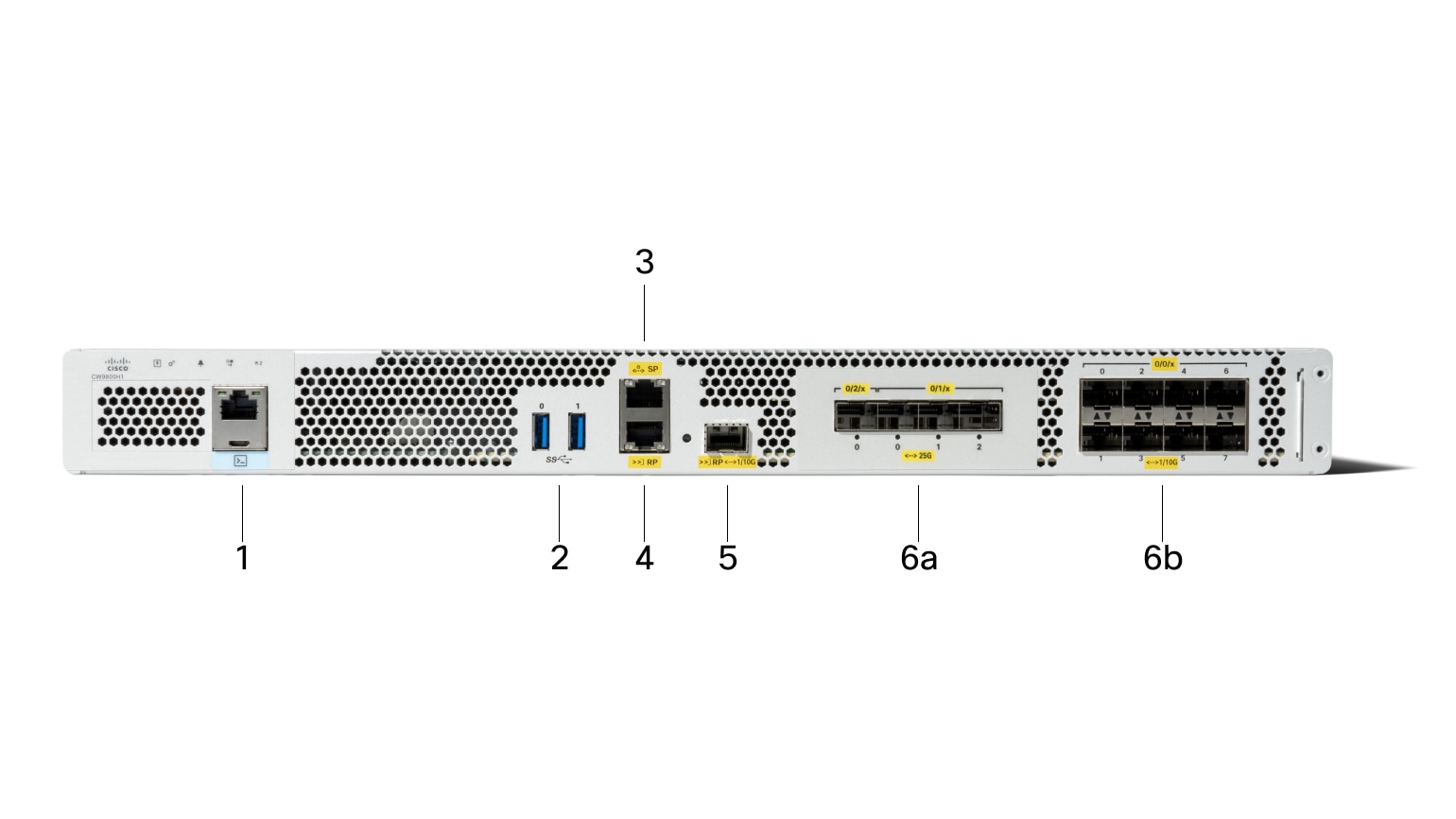

| Label | Description | |
|---|---|---|
| 1 | 1x RJ45 console port 1x 5-pin Micro-B USB console port | Console ports is disabled for Campus Gateway deployment |
| 2 | 2x USB 3.0 ports | USB 3.0 ports are disabled for Campus Gateway deployment |
| 3 | 1x RJ-45 service port | Service port for accessing the local status page of the device |
| 4 | 1x RJ-45 redundancy port | Redundancy port used for high availability stateful fail-over of cluster members |
| 5 | 1x SFP+ 10 Gbps Ethernet redundancy port | Redundancy port used for clustering; works with Cisco supported SFPs for redundancy port |
| 6 | Fixed uplink ports (option a) Fixed uplink ports | 4x 25 Gbps SFP28 8x 1/10 Gbps SFP+ |
Specifications
Table 1. Product specifications
| Item | Specification |
|---|---|
| SKU | CW9800H1-MCG |
| Minimum supported release | Campus Gateway Release MR-31.2 Access Points MR-31.2 |
| Throughput | Up to 100 Gbps (200 Gbps in clustered) |
| Scale | 5,000 access points and 50,000 clients |
| Data ports | 4 x 25 Gbps SFP28 8 x 1/10 Gbps SFP+ |
| Power | Dual 750W AC power supplies (Option for upgradeable 1100W DC) |
Redundancy ports | 1 x 1 Gbps RJ-45 1 x 1/10 Gbps SFP+ |
| Service ports | 1 x RJ-45 |
| Supported SFPs | Small Form-Factor Pluggable (SFP) Modules supported:
Enhanced SFP (SFP+ / SFP28) Modules supported:
Supported Redundancy Port SFP (SFP / SFP+) Modules:
|
Table 2. Campus Gateway supported access points
| Standard | Models |
|---|---|
| Wi-Fi 6 | MR36, MR36H, MR44, MR46, MR46E, MR56, MR76, MR78, MR86 |
| Wi-Fi 6E | MR57, CW9162, CW9163, CW9164, CW9166 |
| Wi-Fi 7 | All models |
Licensing
Campus Gateway does not require a device license for implementation. However, access points supported by Campus Gateway will require either an Enterprise or Advanced tier cloud license, or for Wi-Fi 7 access points, a Cisco Networking subscription of either the Essentials or Advantage tier to enable dashboard functionality. For more information on licensing, see this resource.
Cisco Enterprise Agreements
The Cisco Enterprise Agreement (EA) is a flexible licensing solution that simplifies the purchase, management, and deployment of Cisco technologies.
By combining multiple Cisco software and services into one agreement, the EA provides easy access to a wide range of products, including networking, security, collaboration, and data center solutions.
This approach reduces administrative tasks, offers predictable costs, and allows for scalability and adaptability. With the flexibility of the Cisco EA, organizations can drive digital transformation and innovation while maintaining control over their IT investments. For more information, go to Cisco Enterprise Agreement.
Offers
To connect with a Cisco sales expert, build your own estimate, or find a partner, visit our How to Buy hub.
Ordering information
Table 3. Ordering information
| Product number | Description |
|---|---|
| CW9800H1-MCG | Campus Gateway |
Warranty
The following table provides information about the E-LLW.
Table 4. Enhanced Limited Lifetime Warranty (E-LLW) details
| Description | Cisco E-LLW |
|---|---|
| Devices covered | Applies to Cisco Campus Gateway.. |
| Warranty duration | As long as the original customer owns the product. |
| End-of-Life Policy | In the event of discontinuance of product manufacture, Cisco warranty support is limited to 5 years from the announcement of discontinuance. |
| Hardware replacement | Cisco or its service center will use commercially reasonable efforts to ship a replacement for NBD delivery, where available. Otherwise, a replacement will be shipped within 10 working days after receipt of the Return Materials Authorization (RMA) request. Actual delivery times might vary depending on customer location. |
| Effective date | Hardware warranty commences from the date of shipment to customer (and in case of resale by a Cisco reseller, not more than 90 days after original shipment by Cisco). |
| TAC support | Cisco will provide during business hours, 8 hours per day, 5 days per week, basic configuration, diagnosis, and troubleshooting of device-level problems for up to a 90-day period from the date of shipment of the originally purchased Cisco Catalyst 9600 Series product. This support does not include solution or network level support beyond the specific device under consideration. |
| Cisco.com access | Warranty allows guest access only to Cisco.com. |
