Cisco 8300 Series Secure Routers Data Sheet

A Part of the Cisco 8000 Series Secure Routers Family.

Last updated: June 10, 2025.

Download data sheet (PDF) Watch SD-WAN demo

Overview

Cisco 8300 Series Secure Routers deliver secure networking simplified. Powered by the all-new secure networking processor and the unified Cisco secure networking platform, the Cisco 8300 Series Secure Routers deliver robust, platform-level security, advanced performance engineering through routing and SD-WAN, and on-premises, infrastructure-as-code, or cloud management flexibility that enables businesses to seamlessly scale and grow. Each class of secure routers is designed to deliver risk reduction, enhanced reliability, and future readiness.

Platform highlights

Cisco 8300 Series Secure Routers are engineered for large branch locations and provide scalable, high-throughput connectivity with embedded platform-level security. With hardware-native assurance, post-quantum cryptography, and unified infrastructure as code, the Cisco 8300 Series enables large branches to support bandwidth-intensive applications and evolving threat landscapes with confidence.

Industries:

Manufacturing (large plants, distribution centers)
Transportation (regional logistics hubs)
Utilities (regional operations centers)
Education (large K-12 schools, district offices)

Sites:

Large branch offices with high user/device density
Call center or customer experience center
Major logistics, transportation, or public hubs
Professional services office

Use cases:

Secure routing or SD-WAN for thousands of users/devices
High-throughput, secure connectivity for bandwidth-intensive applications
Network segmentation for compliance purposes
Advanced threat protection for mission-critical operations

Key features

Models and specifications

The Cisco 8300 Series Secure Routers offer both fixed and modular configurations to meet diverse networking needs and include two models: Cisco C8375-E-G2 and Cisco C8355-G2.

C8375-E-G2 is a 1RU modular platform with 1 SM and 1 NIM slot plus 2 x 10 Gbps SFP/SFP+ and 4 x 2.5G multigigabit RJ45 ports.

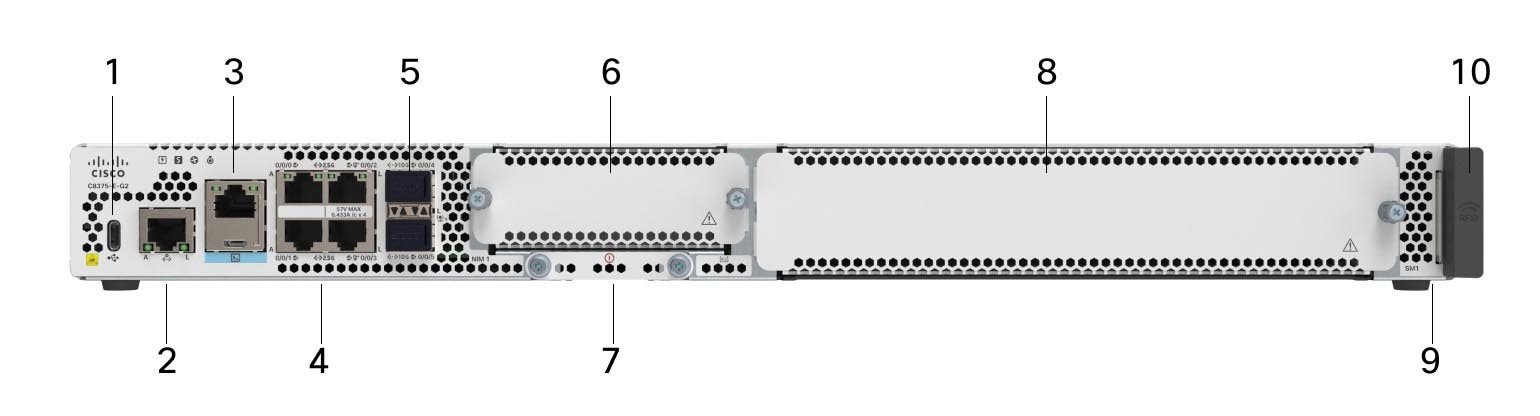

Figure 1. Front view of a Cisco C8375-E-G2 Secure Router

Table 1. Front panel of Cisco C8375-E-G2 Secure Router

Label	Description
1	USB 3.0 Type C Storage
2	Management RJ45 Port
3	Console RJ45 / Micro-USB Port
4	2.5G Multigigabit RJ45 Port
5	10G SFP/SFP+ Port
6	NIM Slot
7	M.2 Storage Slot (eUSB / SED)
8	SM Slot
9	Label Tray
10	RFID

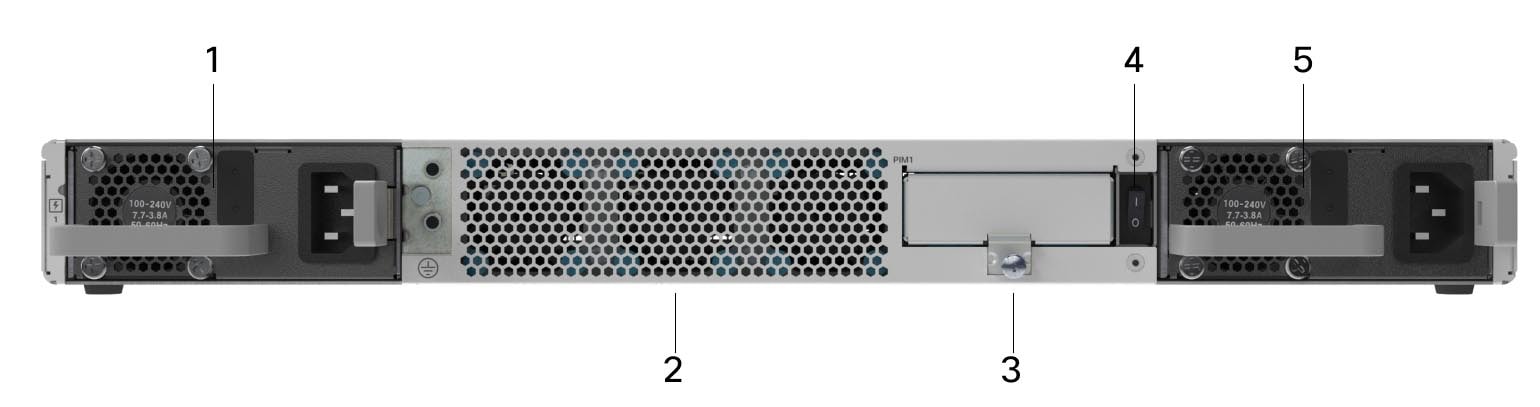

Figure 2. Rear view of a Cisco C8375-E-G2 Secure Router

Table 2. Rear panel of Cisco C8375-E-G2 Secure Router

Label	Description
1	Power Supply Slot 1
2	Replaceable Fan Tray Assembly
3	PIM Slot
4	Power ON/OFF Switch
5	Power Supply Slot 2

C8355-G2 is a 1RU fixed platform with 4 x 10 Gbps SFP/SFP+, 4 x 5G multigigabit RJ45, and 2 x 1G RJ45 ports.

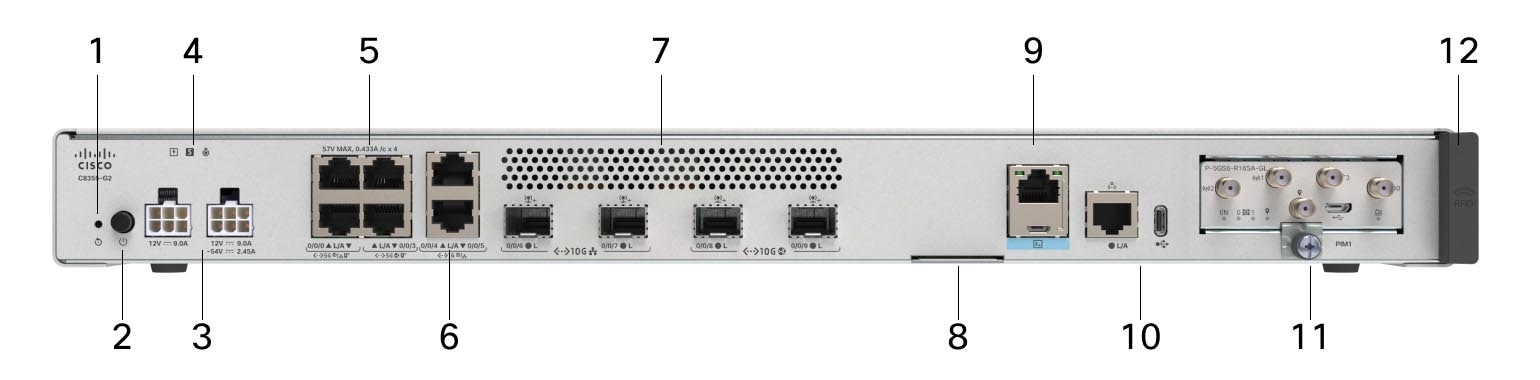

Figure 3. Front view of a Cisco C8355-G2 Secure Router

Table 3. Front panel of Cisco C8355-G2 Secure Router

Label	Description
1	Reset Button
2	Power Button
3	Power Supply Input
4	Status LED
5	5G Multigigabit RJ45 Port
6	1G RJ45 Port
7	10G SFP/SFP+ Port
8	Label Tray
9	Management RJ45 Port
10	Console RJ45 / Micro-USB Port
11	PIM Slot
12	RFID

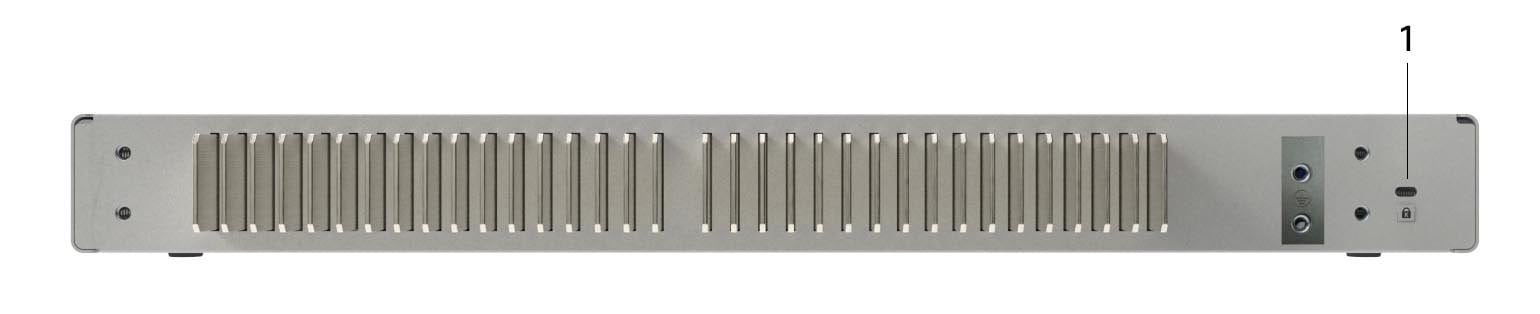

Figure 4. Rear view of a Cisco C8355-G2 Secure Router

Table 4. Rear panel of Cisco C8355-G2 Secure Router

Label	Description
1	Kensington Lock

Table 5. Technical specifications

Label	Cisco C8375-E-G2	Cisco C8355-G2
Interfaces and Slots
WAN Ports	2 x 10G SFP/SFP+ 4 x 2.5G mGig RJ45 (2x UPOE+)	2 x 10G SFP/SFP+ 2 x 5G mGig RJ45 (2x UPOE+)
Flex Ports	-	2 x 5G mGig RJ45 (2x UPOE+) 2 x 1G RJ45
LAN Ports	-	2 x 10G SFP/SFP+
Expansion Slots	1 x NIM 1 x SM	-
Cellular Slot	1 x PIM	1 x PIM
Management Port	1 x RJ45 OOB Mgmt 1 x RJ45 / 1x Micro-USB console
Memory and Storage
DRAM	16 GB (default) Upgradeable to 32 GB	16 GB (Fixed)
Storage	16 GB (default) 32 GB 600 GB 2 TB	16 GB (default) 32 GB 600 GB 2 TB
Power Supply	400W AC (default) 760W AC + PoE (PoE Budget - 360W) 500W DC	110W AC (default) 230W AC + PoE (PoE Budget - 120W)
Throughput
Forwarding (512B)	38 Gbps	38 Gbps
IPsec (512B)	20 Gbps	20 Gbps
SD-WAN* (512B)	12 Gbps	8.7 Gbps
Threat Protection* (EMIX)	7 Gbps	3.9 Gbps

^{*SD-WAN feature combination: IPsec + QoS + Deep Packet Inspection + Flexible NetFlow

* Threat Protection : 100% DIA-NAT + NGFW + IPS + URLF + AMP}

Table 6. Physical specifications

Description	C8375-E-2	C8355-G2
Dimensions (H x W x D)	1.73 in x 17.5 in x 16.25 in	1.73 in x 17.5 in x 11.49 in
Rack Units (RU)	1 RU	1 RU
Chassis weight	14.3 lbs (with 2X AC power supplies and fan tray)	9.25 lbs
Input voltage	AC: 85 to 264 VAC DC: -40 to 72V; 48V nominal	AC: 85 to 264 VAC
Operating temperature	0 to 40°C (32° to 104°F), up to 10,000 feet 0 to 45°C (32° to 113°F), up to 6000 feet For NEBS, -5 to 55°C (23° to 131°F), up to 6000 feet	0 to 40°C (32° to 104°F), sea level
Storage temperature	-40 to 70°C -40° to 158°F	-40 to 70°C -40° to 158°F
Relative humidity (noncondensing)	Operating: 5 to 85% Non-operating and Storage: 5 to 95%

Modules

Product number	Description
LAN modules
C-NIM-4X	4-port 1/10 Gbps SFP/SFP+ switch NIM, LAN/WAN MACsec and Optional L3
C-NIM-8T	8-port 100 Mbps/1 Gbps switch NIM, LAN/WAN MACsec and Optional L3
C-NIM-8M	8-port 100M/1/2.5 Gbps switch NIM, UPOE+, LAN/WAN MACsec and Optional L3
DSL/broadband
NIM-VAB-A	Multi-mode VDSL2/ADSL/2/2+ NIM Annex A
NIM-VA-B	Multi-mode VDSL2/ADSL/2/2+ NIM Annex B
NIM-VAB-M	Multi-mode VDSL2/ADSL/2/2+ NIM Annex M
Serial WAN interface
SM-X-1T3/E3	1-port clear-channel T3/E3 Service Module
NIM-1T	1-port serial high-speed WAN interface card
NIM-2T	2-port serial high-speed WAN interface card
NIM-4T	4-port serial high-speed WAN interface card
Async WAN interface
NIM-16A	16-port Asynchronous Module
NIM-24A	24-port Asynchronous Module
SM-X-64A	64-port Asynchronous Module
Fixed Wireless Access
P-5GS6-R16SA-GL*	5G Sub-6 GHz Pluggable – 5G SA Global
P-LTEA7-NA*	CAT7 LTE Advanced Pluggable - North America
P-LTEA7-EAL*	CAT7 LTE Advanced Pluggable - EMEA, APAC, and LATAM
P-LTEA7-JP*	CAT7 LTE Advanced Pluggable - Japan
NIM Carrier Adapter Card
C-SM-NIM-ADPT	Single-wide 2x NIM carrier module in SM-X form factor

*C8355-G2 only supports Fixed Wireless Access modules

Software management

The minimum Cisco IOS XE release versions for the Cisco 8300 Series Secure Routers are listed below:

	Device OS	Cisco Catalyst SD-WAN Manager
Cisco C8375-E-G2	Starting IOS XE 17.15.3	Starting SD-WAN Release 20.15.3
Cisco C8355-G2	Starting IOS XE 17.18.1	Starting SD-WAN Release 20.18.1

Ordering information

For a detailed overview of the ordering process, please visit the Cisco 8000 Series Secure Routers Ordering Guide.

Warranty

Cisco 8300 Series Secure Routers come standard with a Cisco Limited 2-Year Return To Factory Hardware Warranty. For more information, refer to:

https://www.cisco.com/c/en/us/products/warranties/warr-2yr-ltd-hw.html

Sustainability profile

Cisco is embedding sustainability into the product lifecycle—from manufacturing to end of use. Designed with consideration for Cisco's Circular Design Principles, our products feature both individual and portfolio-wide programs and innovations, including those that address efficient architecture design, power consumption, energy management, packaging sustainability, and takeback. These elements are pivotal in reducing operational costs and advancing net-zero greenhouse gas (GHG) emissions targets, and other sustainability-related ambitions.

Information about Cisco's environmental, social, and governance (ESG) initiatives and performance is available in Cisco's Purpose Reporting Hub.

Table 7. Sustainability references

Sustainability topic		Description
Power	Power management configuration	The power management chapter in the System Management Configuration Guide provides detailed information on power management features and configurations available for the Cisco 8300 Series Secure Routers. The features discussed include power-supply modes, and power-budgeting considerations.
	Auto-off ports without Small Form-factor Pluggable (SFP)	Once enabled, the system checks for the presence of SFPs in Fiber ports on a regular basis and turns on SerDes when SFP is detected. If no SFP is detected, the system will keep SerDes off to save energy.
	Auto-off Port LEDs	Once enabled, port light emitting diodes (LEDs) will stay depowered saving energy until a link event is triggered or manually enabled by Command Line Interface or Mode button.
Energy management	Energy Management dashboard	The Energy Management dashboard on the Catalyst SD-WAN Manager offers comprehensive energy management capabilities, allowing users to monitor energy usage, energy mix, costs, and greenhouse gas emissions in real time Energy Management
Energy management	Environmental monitoring configuration	The environmental monitoring chapter in the System Management Configuration Guide provides guidelines for configuring monitoring of environmental conditions of chassis components.
Materials, modularity, and reuse	Hardware standardization and modularity	Cisco 8300 Series Secure Routers use standard subassemblies and common components across products to streamline production and enhance repairability and upgradability.
	Simplified architecture	Cisco 8300 Series Secure Routers offer a simplified architecture by consolidating multiple discreet ASIC/NPU components into a central system-on-chip (SoC) architecture, providing multiple discrete functions in a more integrated design.
	Powder-coat finish	Cisco 8300 Series Secure Routers use a powder-coating finish instead of oil-based wet paint. In comparison, a powder-coating finish reduces the amount of harmful solvents used and volatile organic compounds (VOCs) emitted during the painting process.
	Bezel-free design	Cisco 8300 Series Secure Routers use a bezel-free design reducing plastic usage.
	Cisco Takeback and Reuse	This program allows customers to return used equipment for responsible recycling and reuse. Takeback and Reuse Program
	Cisco Refresh	This program offers certified remanufactured products, providing cost-effective alternatives to new equipment. Cisco Refresh
	Foam reduction	Cisco 8000 Series Secure Routers are packaged with corrugated and fiber flute materials, containing minimum 25% post-consumer recycled content. Circular economy and packaging sustainability
	Accessory opt-in	Accessory opt-in allows customers to select whether to include the accessory kit. Not including the kit results in using fewer materials and reducing waste. The default is now to not include the kit unless it is required.
Regulatory compliance	Environmental compliance	Information regarding Cisco compliance with applicable environmental laws and regulations is available at the Environmental Compliance section of Cisco's Purpose Reporting Hub. Environmental compliance
	Product Approvals Status (PAS)	Information regarding the certification status for given Cisco products in certain countries is available at Cisco's self-service PAS database. PAS database
	Product-related materials compliance	This page addresses Cisco's position regarding relevant product-related materials legislation, such as Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH). RoHS and REACH
	Waste Electrical and Electronic Equipment (WEEE), battery, and packaging compliance	This page discusses Cisco's position regarding relevant product-related legislation on recycling, battery, and packaging. WEEE, battery and packaging
	Cisco packaging materials and codes	This table provides packaging material identification for packaging used for Cisco products. Packaging materials and codes
General	Sustainability inquiries	For ESG or CSR inquiries, please contact your Cisco account team.
	Cisco policies, positions, and guides	Links to select Cisco's Environmental Sustainability policies, positions, and guides are provided in the “Policies, positions, and guides” section of Cisco's Purpose Reporting Hub. Policies, positions, and guides
	Cisco Green Pay	This page provides an overview of Cisco Green Pay, a financing program aimed at promoting more sustainable technology adoption by providing flexible payment options. Green Pay

Appendix

Safety and compliance

Chassis

The section below lists the safety and compliance information for the Cisco 8300 Series Secure Routers chassis.

Safety and certifications	EMC and EMI compliance
UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 62368-1 CAN/CSA-C22.2 No. 62368-1 IEC 62368-1 EN 62368-1 AS/NZS 62368.1 CNS15598-1 KC 62368-1	47 CFR Part 15 Class A ICES 003 Class A AS/NZS CISPR 32 Class A CISPR 32 Class A EN55032 Class A VCCI-CISPR 32 Class A CNS 15936 Class A KS C 9832 Class A IEC/EN 61000-3-2: Power Line Harmonics IEC/EN 61000-3-3: Voltage Fluctuations and Flicker IEC/EN-61000-4-2: Electrostatic Discharge Immunity IEC/EN-61000-4-3: Radiated Immunity IEC/EN-61000-4-4: Electrical Fast Transient Immunity IEC/EN-61000-4-5: Surge AC, DC, and Signal Ports IEC/EN-61000-4-6: Immunity to Conducted Disturbances IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations KS C 9835 EN300 386: Telecommunications Network Equipment (EMC) EN55032: Multimedia Equipment (Emissions) EN55024: Information Technology Equipment (Immunity) EN55035: Multimedia Equipment (Immunity) EN61000-6-1: Generic Immunity Standard

Safety and certifications

EMC and EMI compliance

UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 62368-1
CAN/CSA-C22.2 No. 62368-1
IEC 62368-1
EN 62368-1
AS/NZS 62368.1
CNS15598-1
KC 62368-1

47 CFR Part 15 Class A
ICES 003 Class A
AS/NZS CISPR 32 Class A
CISPR 32 Class A
EN55032 Class A
VCCI-CISPR 32 Class A
CNS 15936 Class A
KS C 9832 Class A
IEC/EN 61000-3-2: Power Line Harmonics
IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
IEC/EN-61000-4-2: Electrostatic Discharge Immunity
IEC/EN-61000-4-3: Radiated Immunity
IEC/EN-61000-4-4: Electrical Fast Transient Immunity
IEC/EN-61000-4-5: Surge AC, DC, and Signal Ports
IEC/EN-61000-4-6: Immunity to Conducted Disturbances
IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
KS C 9835
EN300 386: Telecommunications Network Equipment (EMC)
EN55032: Multimedia Equipment (Emissions)
EN55024: Information Technology Equipment (Immunity)
EN55035: Multimedia Equipment (Immunity)
EN61000-6-1: Generic Immunity Standard

Document history

New or revised topic	Described in	Date
Document created	Datasheet	June 10, 2025
